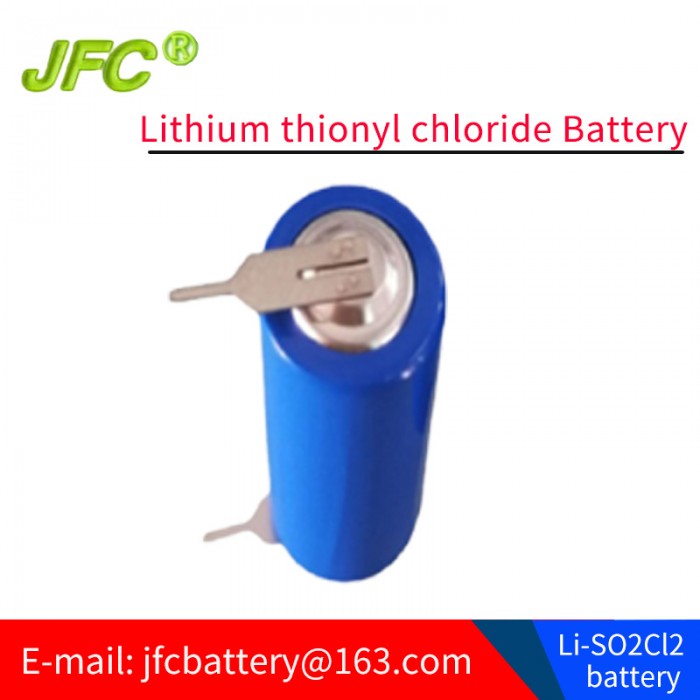

Lithium thionyl chloride battery ER17335 3.6V 2200mAh Li-SO2Cl2 battery

Technical specifications:

Battery Technology	Lithium thionyl chloride / LiSOCL2
Battery structure	High capacity type
Nominal Voltage	3.6V
Nominal Capacity	2200mAh
Open circuit voltage	3.66V (at +20°C)
Cut off Voltage	2.0V
Max. Constant Current	40mA
Max. Pulse Current	80mA
Operating Temperature	-55°C~+85°C/-67°F~+185°F
Storage Life	≥10 years
Self – Discharge Rate:	<1% per year
External Diameter (Max)	17.0mm
External Height (Max)	33.5mm
Weights	10g

More info
Data sheet

Related products:

ER10280 0.5Ah φ10.5×28.0mm

ER14250S 0.7Ah φ14.5×25.0mm

ER14335S 1.0Ah φ14.5×33.5mm

ER14505S 1.6Ah φ14.5×50.5mm

ER17335S 1.7Ah φ17.0×33.5mm

ER18505S 2.4Ah φ18.5×50.5mm

ER26500S 4.5Ah φ26.0×50.0mm

ER26102S 10Ah φ26.0×102.0mm

ER34615S 12Ah φ34.0×61.5mm

ER34127S 25Ah φ34.0×127mm

attery high temperature,high temperature lithium thionyl chloride battery,

Model Number: ER17335
Nominal capacity: 2200mAh
Nominal Voltage: 3.6V
Size: 17.0mmX33.5mm
