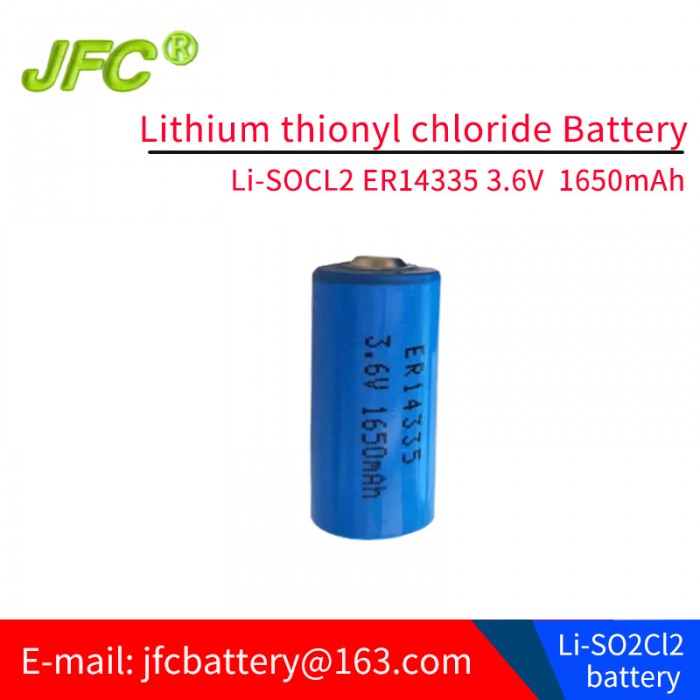

Top quality Li-SOCl2 lithium battery ER14335 2/3AA 3.6V 1700mAh for ETC OBU



Battery Technology

Lithium thionyl chloride / LiSOCL2

Battery structure

High capacity type

Nominal Voltage

3.6V

Nominal Capacity

1700mAh

Open circuit voltage

3.66V (at +20°C)

Cut off Voltage

2.0V

Max. Constant Current

75mA

Max. Pulse Current

150mA

Operating Temperature

-55°C~+85°C/-67°F~+185°F

Storage Life

≥10 years

Self – Discharge Rate:

<1% per year

External Diameter (Max)

14mm

External Height (Max)

33.5mm

Weights

13g


































Features



1.High continuous discharge current and current pulses.
2.High energy density, 430Wh/Kg.
3.Open circuit voltage above 3.65V for single cell.
4.Wide range of operating temperature(-55°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).



Application

The battery have wide applications:

Utility water/ Gas Meter, Automatic Meter Reading;

Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high capacity batteries.

  • Model Number: ER14335
  • Nominal capacity: 1650mAh
  • Nominal Voltage: 3.6V
  • Size: 14.5mmX33.5mm
