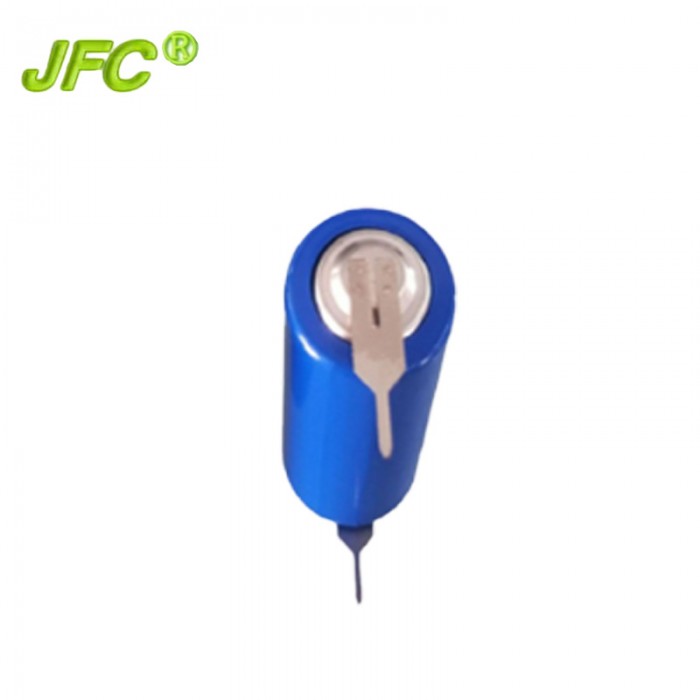

Li/Socl2 3.6V 36V Dd Type Lisocl2 Battery Cell Er341245

Technical specifications:



Battery Technology

Lithium thionyl chloride / LiSOCL2

Battery structure

High capacity type

Nominal Voltage

3.6V

Nominal Capacity

3500mAh

Open circuit voltage

3.66V (at +20°C)

Cut off Voltage

2.0V

Max. Constant Current

400mA

Max. Pulse Current

1000mA

Operating Temperature

-55°C~+85°C/-67°F~+185°F

Storage Life

≥10 years

Self – Discharge Rate:

<1% per year

External Diameter (Max)

34.0mm

External Height (Max)

124.5mm



Product features :
· High cell voltage : The battery has an open-circuit voltage of 3.67V and an operating voltage of 3.60V, which are considerably higher than in any other commercially available primary batteries.
· Wide operating temperature range : The battery is capable of operation in a wide temperature range normally from -55ºC to +85ºC.
· High energy density : The electrochemical system exhibits the highest energy density of any available primary battery, up to 650Wh/kg and 1280Wh/L.
· Long operating life and superior shelf life : The self-discharge of Li/SOCl2 battery is extremely low (less than 1% per year at 20ºC), which can support long storage periods and achieve a service life of 10 to 20 years.
· Excellent safety : The complete line of products is recognized and regularly inspected by Underwriters Laboratories, and meet UN transportation test requirements.
· Hermetically sealed case : The hermetically sealed case is essential for the long shelf life and inherent safety of the devices in which the batteries are used. The cover is welded to the can. A glass-to-metal seal is used to insulate the positive terminal. A safety vent is used on the negative terminals for spiral type.
Applications:
· AMR (Automated meter reading) utility metering (Electricity meter, Gas meter, Water meter and Heat meter)
· Alarms and security wireless devices
· Mobile asset tracking
· Medical Equipment
· GPS
· Emergency location transmitters beacons (ELTs, EPIRBs)
· Professional electronics
· radio communication
· Oil exploration
· Automotive telemetry

Product features :

· High cell voltage : The battery has an open-circuit voltage of 3.67V and an operating voltage of 3.60V, which are considerably higher than in any other commercially available primary batteries.



· Wide operating temperature range : The battery is capable of operation in a wide temperature range normally from -55ºC to +85ºC.



· High energy density : The electrochemical system exhibits the highest energy density of any available primary battery, up to 650Wh/kg and 1280Wh/L.



· Long operating life and superior shelf life : The self-discharge of Li/SOCl2 battery is extremely low (less than 1% per year at 20ºC), which can support long storage periods and achieve a service life of 10 to 20 years.



· Excellent safety : The complete line of products is recognized and regularly inspected by Underwriters Laboratories, and meet UN transportation test requirements.



· Hermetically sealed case : The hermetically sealed case is essential for the long shelf life and inherent safety of the devices in which the batteries are used. The cover is welded to the can. A glass-to-metal seal is used to insulate the positive terminal. A safety vent is used on the negative terminals for spiral type.



Applications:

· AMR (Automated meter reading) utility metering (Electricity meter, Gas meter, Water meter and Heat meter)



· Alarms and security wireless devices



· Mobile asset tracking



· Medical Equipment



· GPS



· Emergency location transmitters beacons (ELTs, EPIRBs)



· Professional electronics



· radio communication



· Oil exploration



· Automotive telemetry



  • Model Number: ER341245
  • Nominal capacity: 35000mAh
  • Nominal Voltage: 3.6V
  • Size: 34mmX124.5mm
