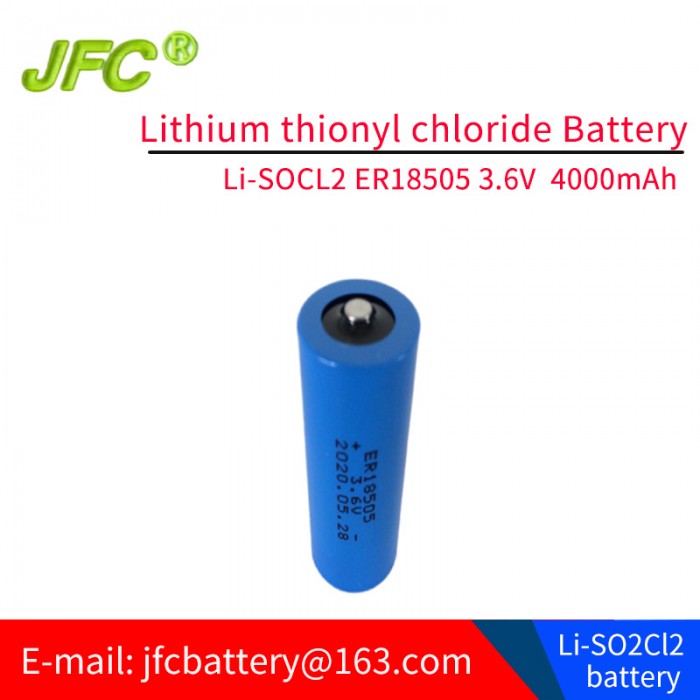

3.6V 4000mAh Lithium ER18505 Primary Battery Lisocl2

Technical specifications:



Battery Technology

Lithium thionyl chloride / LiSOCL2

Battery structure

High capacity type

Nominal Voltage

3.6V

Nominal Capacity

1200mAh

Open circuit voltage

3.66V (at +20°C)

Cut off Voltage

2.0V

Max. Constant Current

130mA

Max. Pulse Current

180mA

Operating Temperature

-55°C~+85°C/-67°F~+185°F

Storage Life

≥10 years

Self – Discharge Rate:

<1% per year

External Diameter (Max)

18.5mm

External Height (Max)

50.5mm



Product features :
· High cell voltage : The battery has an open-circuit voltage of 3.67V and an operating voltage of 3.60V, which are considerably higher than in any other commercially available primary batteries.
· Wide operating temperature range : The battery is capable of operation in a wide temperature range normally from -55ºC to +85ºC.
· High energy density : The electrochemical system exhibits the highest energy density of any available primary battery, up to 650Wh/kg and 1280Wh/L.
· Long operating life and superior shelf life : The self-discharge of Li/SOCl2 battery is extremely low (less than 1% per year at 20ºC), which can support long storage periods and achieve a service life of 10 to 20 years.
· Excellent safety : The complete line of products is recognized and regularly inspected by Underwriters Laboratories, and meet UN transportation test requirements.
· Hermetically sealed case : The hermetically sealed case is essential for the long shelf life and inherent safety of the devices in which the batteries are used. The cover is welded to the can. A glass-to-metal seal is used to insulate the positive terminal. A safety vent is used on the negative terminals for spiral type.
Applications:
· AMR (Automated meter reading) utility metering (Electricity meter, Gas meter, Water meter and Heat meter)
· Alarms and security wireless devices
· Mobile asset tracking
· Medical Equipment
· GPS
· Emergency location transmitters beacons (ELTs, EPIRBs)
· Professional electronics
· radio communication
· Oil exploration
· Automotive telemetry

Product features :

· High cell voltage : The battery has an open-circuit voltage of 3.67V and an operating voltage of 3.60V, which are considerably higher than in any other commercially available primary batteries.

· Wide operating temperature range : The battery is capable of operation in a wide temperature range normally from -55ºC to +85ºC.

· High energy density : The electrochemical system exhibits the highest energy density of any available primary battery, up to 650Wh/kg and 1280Wh/L.

· Long operating life and superior shelf life : The self-discharge of Li/SOCl2 battery is extremely low (less than 1% per year at 20ºC), which can support long storage periods and achieve a service life of 10 to 20 years.

· Excellent safety : The complete line of products is recognized and regularly inspected by Underwriters Laboratories, and meet UN transportation test requirements.

· Hermetically sealed case : The hermetically sealed case is essential for the long shelf life and inherent safety of the devices in which the batteries are used. The cover is welded to the can. A glass-to-metal seal is used to insulate the positive terminal. A safety vent is used on the negative terminals for spiral type.

Applications:

· AMR (Automated meter reading) utility metering (Electricity meter, Gas meter, Water meter and Heat meter)

· Alarms and security wireless devices

· Mobile asset tracking

· Medical Equipment

· GPS

· Emergency location transmitters beacons (ELTs, EPIRBs)

· Professional electronics

· radio communication

· Oil exploration

· Automotive telemetry



  • Size: 18.5mmX50.5mm
  • Nominal Voltage: 3.6V
  • Nominal capacity: 4000mAh
  • Model Number: ER18505
