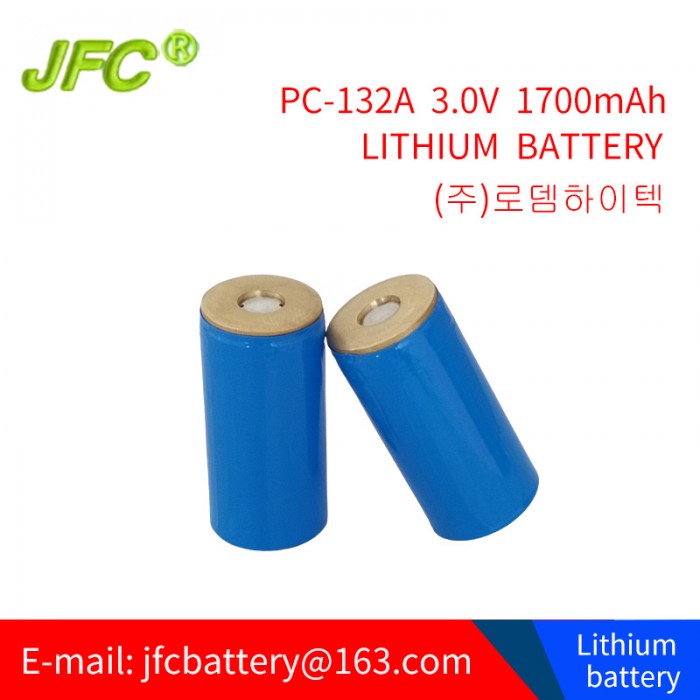

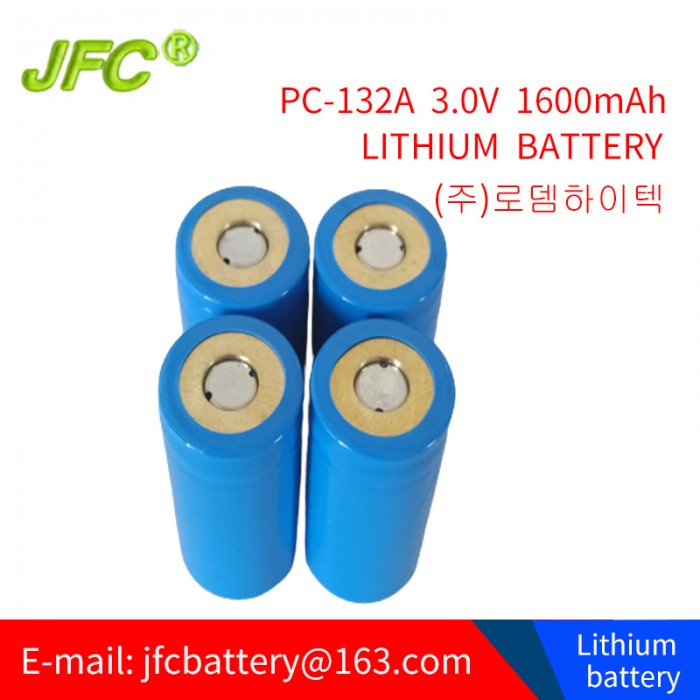

PC-132A Lithium Battery
Features:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
|
Place of Origin: |
Guangdong China (Mainland) |
|
Brand Name: |
JFC |
|
Model Name: |
3.0V CR123A 1500mAh Li/MnO2 Primary Lithium Battery |
|
Other Name: |
CR123A |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity: |
1500mAh |
|
Size: |
16.7(D)*34.2(H))mm |
|
Weight: |
16g |
Specification:
|
No. |
Items |
Specification |
|
1 |
Nominal Voltage |
3.0 V |
|
2 |
Rated Capacity |
1500 mAh with 100 ohm load |
|
3 |
Minimal capacity |
1500 mAh with 100 ohm load |
|
4 |
Max. Discharge Current |
1500 mA continuous |
|
|
|
3000 mA pulse |
|
5 |
Discharge Cut-off Voltage |
2.0 V |
|
6 |
Weight |
Approx. 16 g |
|
7 |
Dimensions |
Diameter: 16.7±0.3 mm |
|
Height: 34.2±0.3 mm |
||
|
|
Operating Temp. |
-20 ℃to 60 ℃ |
|
9 |
Storage Temp. ＜1 year |
-10 ℃to 40 ℃ |
|
10 |
Storage Temp. ＜3 months |
-20 ℃to 60 ℃ |
|
11 |
Note:Poly-switch(PTC:144)is inside the cell. |
|
- Model Number: PC-132A
- Nominal capacity: 1700mAh
- Nominal Voltage: 3.0
- Size: 16.7(D)*34.2(H))mm
